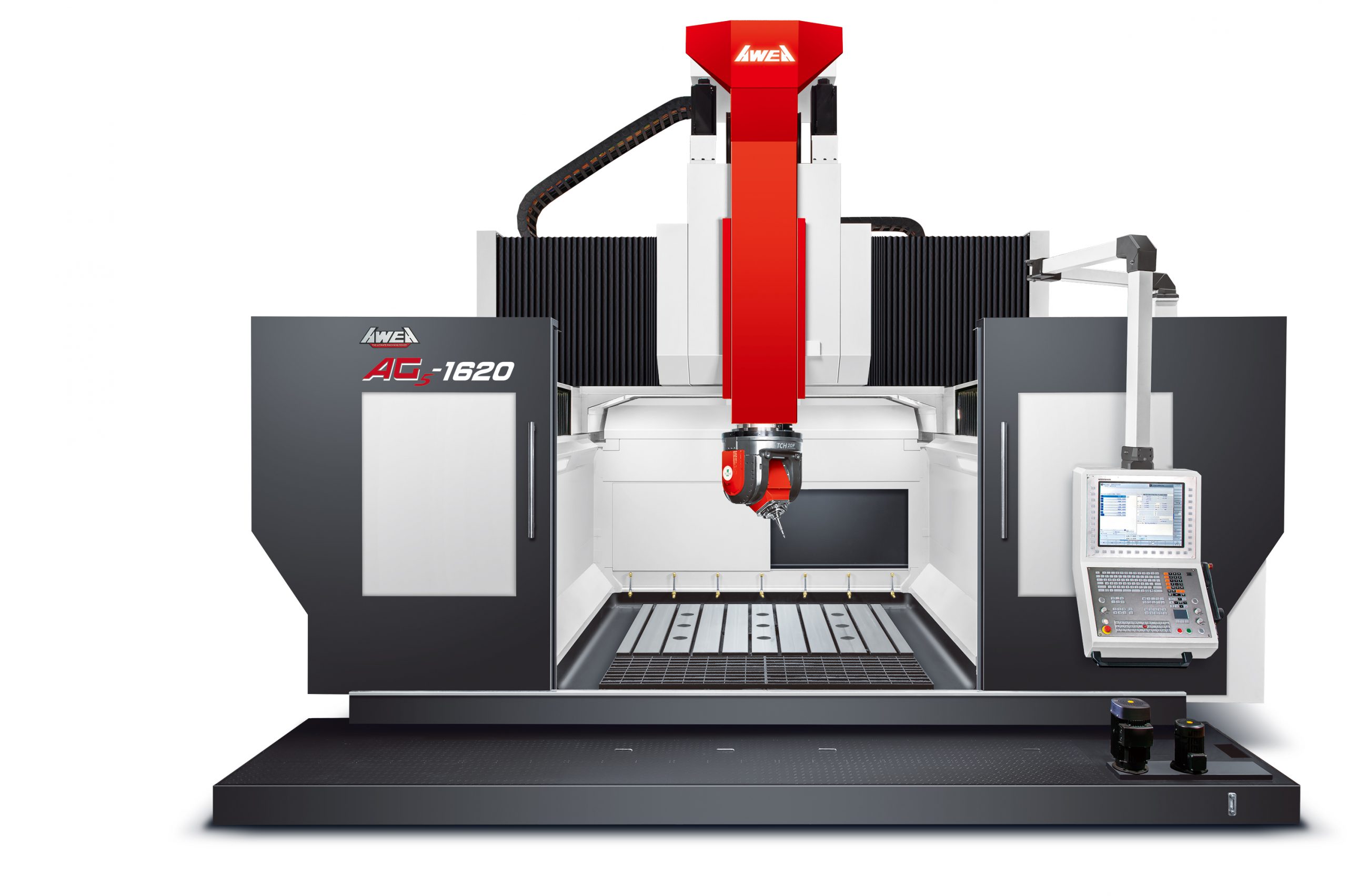

The AWEA AG5-3220

Gantry Type High Speed 5 Axes Machining Centers

Gantry type rigid structure
• 40% less floor space required compared to other bridge type machines with similar travel ranges.
• All axial movements are executed by the cutting tool instead of the work-piece, causing less load on the axes and thus improving dynamic accuracy.

High performance B/C two axes head
• ITALIAN made two axes head designed for high performance & high stability.
• A variety of milling heads are available optionally – high rotation speed / high torque / compact structure.

Advanced axial feed system
• The X and Y axes are driven by linear motors providing low wear, zero backlash and high acceleration.
• The Z-axis is driven by symmetrically arranged servo motors and ballscrews providing optimal dynamic performance.
• The standard HEIDENHAIN linear scales ensure precise positioning accuracy.

Environment-friendly technology
• The GERMAN made hydraulic unit requires only 20% of the space ordinary hydraulic units occupy. It uses up to 90% less electricity than traditional hydraulic units, thus significantly reducing running costs.

Additional Information

X-axis Travel

Y-axis Travel

Z-axis Travel

Distance between columns

Dist. from spindle nose to table top

Distance from 90° spindle center line to table

Table size

T-slot

Table load capacity

Spindle taper

Spindle motor (S1/S6 40%)

Spindle speed

X / Y axes rapid feed rate

Z-axis rapid feed rate

Cutting feed rate

Tool magazine capacity

Max. tool length

Max. tool weight

Max. tool diameter / adj. pocket empty

Positioning accuracy (JIS B 6338)

Repeatability ( JIS B 6338 )

Coolant tank capacity

Lubrication oil tank capacity

Hydraulic tank capacity

Machine weight

Max. work-piece size LxWxH (Tool length 150mm)
