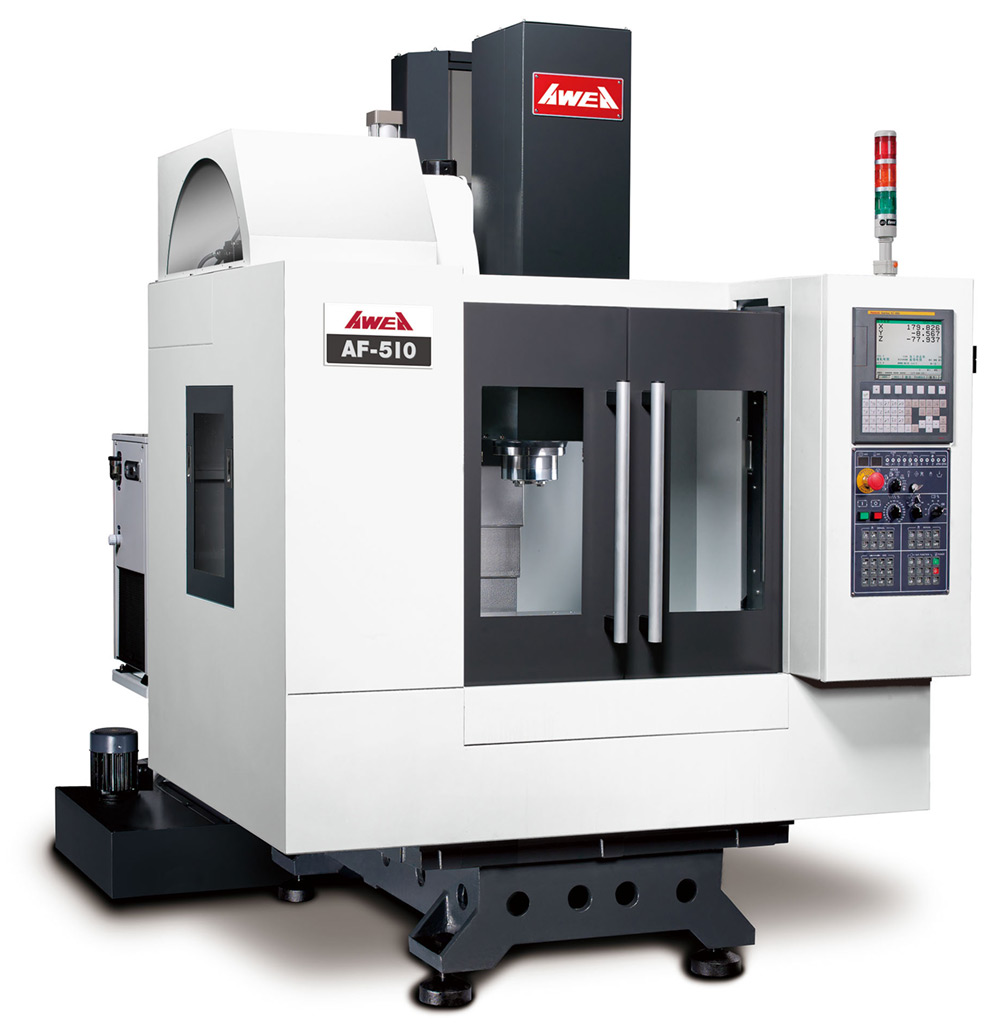

AWEA AF-510 Vertical Milling Machine

YAMA SEIKI utilizes its mature vertical machining centers techniques to present you with the new AF-510 series which is specialized on producing auto parts and electronic parts. Besides its high precision machining ability, with the efficient drilling and tapping function, it also can achieve high productivity which meets your various needs for today and tomorrow.

High speed direct-driven spindle with maximum speed of 20,000 rpm. The spindle and motor are all given a balancing test in-house to ensure optimal machining performance.
3 axes uses roller type linear guideways to provide maximum feedrate up to 50 m/min ( 1,960 IPM ). and with great control and movement.
High performance arm type magazine with synchronous unclamping type tools changer provides fast and steady tool change capability.
The compact machine size takes less floor space which gives the factory more space usage.

Additional Information

X-axis Travel

Y-axis Travel

Z-axis Travel

Table size ( X direction )

Table size ( Y direction )

Table load capacity

Spindle taper

Spindle motor ( cont. / 30 min. )

Spindle speed

X / Y axes rapid feed rate

Z-axis rapid feed rate

Cutting feed rate

Tool magazine capacity

Max. tool length

Max. tool weight

Positioning accuracy ( ISO230-2 )

Repeatability ( ISO230-2 )

Control system

Power requirement

Coolant tank capacity

Machine weight
