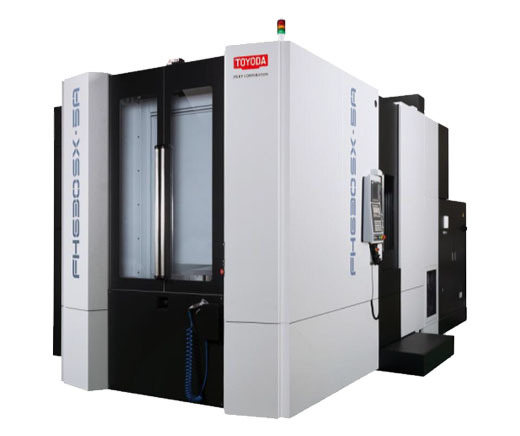

Developed best-in-class 5-axis machine for a 630 mm platform, the FH630SX-i 5-Axis is designed for complex part machining. It features an 8,000 RPM high-torque spindle, with the option of a 15,000 RPM high-power, multi-use spindle, and a replaceable taper design for high maintainability. The tilting spindle comes with a robust C-axis drive train and an enlarged C-axis swivel range of 230 degrees for wider components.
FH630SX-i 5-Axis
- Categories:
- Tags:
Additional Information
| Pallet Size | |
|---|---|
| Table Index | |
| X-axis Travel | |
| Y-axis Travel | |
| Z-axis Travel | |
| Max Workpiece Swing | |
| Max Workpiece Height | |
| Max Work Load on the Pallet | |
| Spindle Output Torque | |
| Available Spindle | CAT#50 107HP 8,000 RPM (1088 Nm)CAT#50 74HP 15,000 RPM (526 Nm) |
| Rapid Feedrate (X axis) | |
| Rapid Feedrate (Y axis) | |
| Rapid Feedrate (Z axis) | |
| Tool Storage Capacity | |
| Standard Floor Space | |
| Machine Height | |
| Standard Net Weight | |
| Linear Repeatability (X, Y, Z) |
