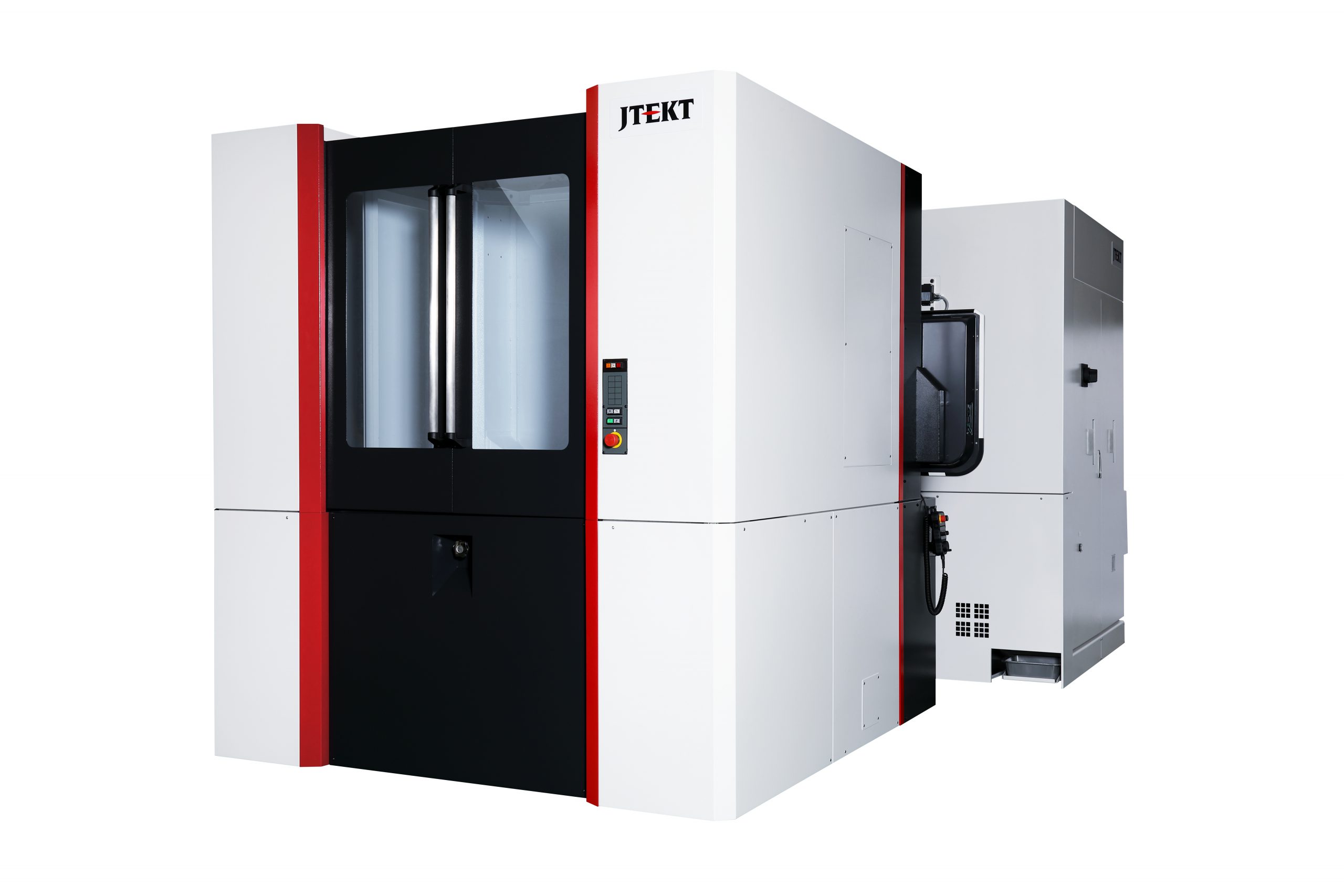

FH5500SX-i

  • Categories:
  • Tags:

Designed to achieve remarkable speed and production reliability, JTEKT’s FH5000 Series meets the growing demand for high metal removal rates, short cycle times and superior surface finishes. It features standard 60-tool ATC capacity, along with a 15,000 RPM, 50 HP (37 kW), 303 Nm (223 ft-lbs.) high acceleration spindle. Equipped with a direct drive B-axis table featuring an index time (90°) of 0.7 seconds – the FH5000’s spindle design, preload system and high torque features allow manufacturers to take advantage of more aggressive, high-volume machining in a compact footprint.

Additional Information

Pallet Size

Table Index

X-axis Travel

Y-axis Travel

Z-axis Travel

Max Workpiece Swing

Max Workpiece Height

Max Work Load on the Pallet

Spindle Output Torque

Available Spindle

Rapid Feedrate (X axis)

Rapid Feedrate (Y axis)

Rapid Feedrate (Z axis)

Tool Storage Capacity

Standard Floor Space

Machine Height

Spindle Lubrication

Tool (dia. x length)

Tool Mass

Tool Holder
