EH5-500

  • Categories: 5-Axis Machining Centers AWEA
  • Tags:

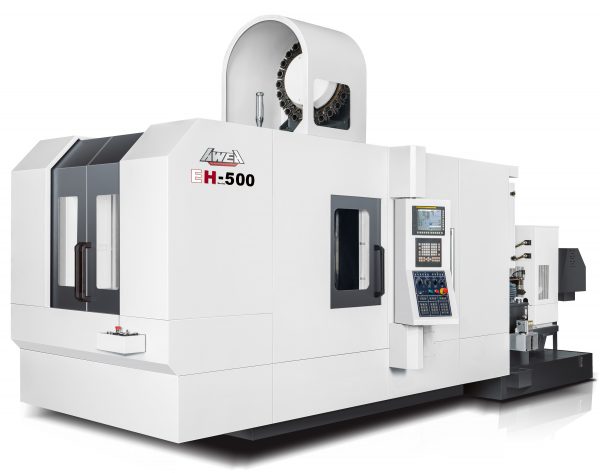

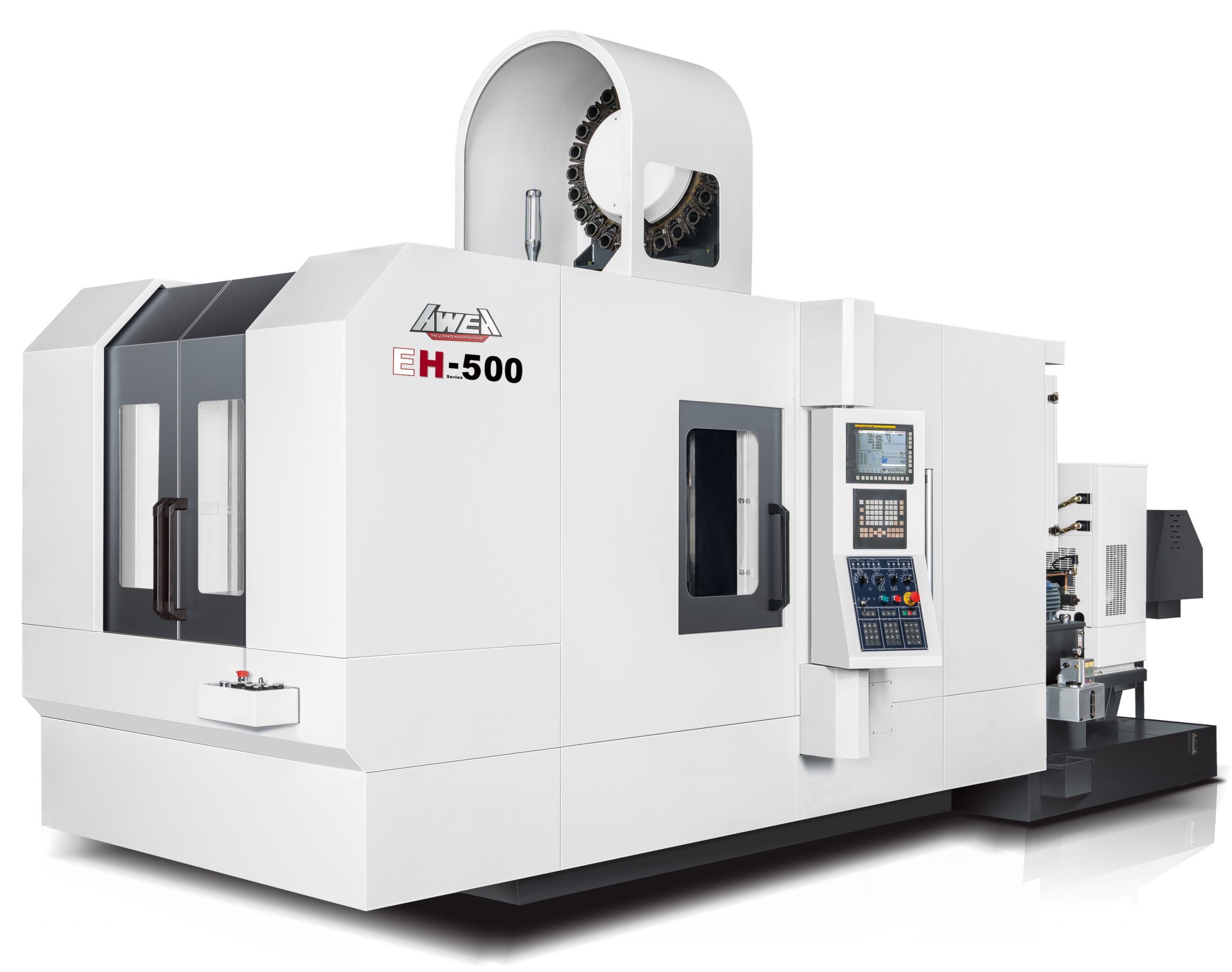

The AWEA EH5-500

Horizontal 5 axes Machining Centers
Combining advanced 5 axes control technology and our extensive horizontal machine development experience, EH5 series’ powerful 5 axes simultaneous machining capability can overcome any difficult cutting tasks and realize unlimited possibilities.

Super rigid headstock structure
The unique headstock and saddle design maintains excellent structural rigidity even with the Z-axis fully extended.

High performance A / B axes trunnion table
With a maximum cutting torque of 9,700 Nm and 0.001° B-axis indexing, the EH5 series provides heavy cutting and high precision capabilities.

Work table variation
A variety of work tables is available for the EH series, offering a perfect solution to precision mold making, mass production and any other task.

Additional Information

X / Y / Z axes travel

Distance from spindle center to table top

Dist. from spindle nose to table center

Table size

Table load capacity

Max. work-piece diameter / height

Table indexing ( B-axis )

Rotary angle

Spindle motor ( cont. / 30 min. )

Spindle speed

Spindle taper

X / Y / Z axes rapid feed rate

Cutting rapid feed rate

Tool magazine capacity

Max. tool diameter / adj. pocket empty

Max. tool length

Max. tool weight

Positioning accuracy ( VDI 3441 )

Repeatability ( VDI 3441 )

Control system

Machine dimension ( L x W x H )

Machine weight
