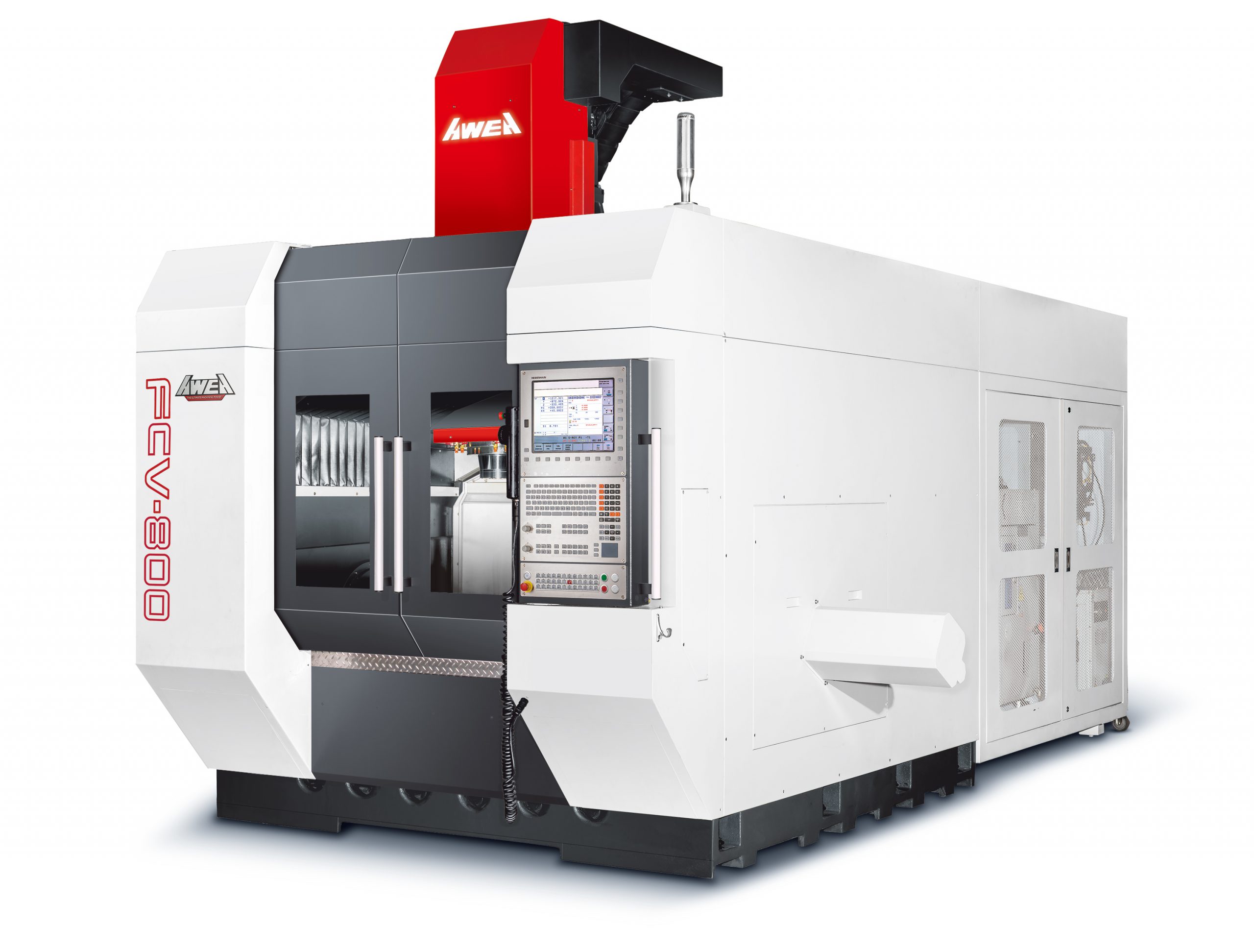

The AWEA FCV-800

Based on customer feedback and up to date technology evolvement, AWEA introduce the latest version FCV-800. Performance, reliability and ergonomic design has been completely upgraded.

Super rigidity gantry type structure features high performance A,C axes trunnion table, which allows FCV-800 series easily overcome integrated complex tasks with milling, drilling, tapping, fixed slanted angle machining, helical machining and intricate shape machining.

High performance A, C axes trunnion table. A-axis swiveling range -120° ~ +30°, C-axis rotary range 360°, table load capacity 1,000 kg

Built-in spindle can export 100% motor output, which provides energy saving, lower noise and higher accuracy.

X / Y / Z axes adopt high power direct drive servo motor. Rapid feed rate is up to 48 m/min.

40T / 60T / 80T arm type ATC fulfills various machining needs.

The optimal exterior design allows work-piece to be easily loaded via overhead crane, which phenomenally enhances production efficiency.

Additional Information

X-axis Travel

Y-axis Travel

Z-axis Travel

Dist. from spindle nose to table top

Table size

T-slot size

Table load capacity

Spindle speed

Spindle taper

Spindle motor ( cont. / 30 min. )

A-axis swivel range

C-axis rotary range

Swiveling speed of A-axis

Rotary speed of C-axis

Cutting feed rate

Rapid feed rate ( X/Y/Z )

ATC type

Tool magazine capacity

Max. tool diameter / adj. pocket empty

Max. tool length

Max. tool weight

CNC control

Coolant tank capacity

Air requirement

Power requirement

Machine weight

Dimensions
