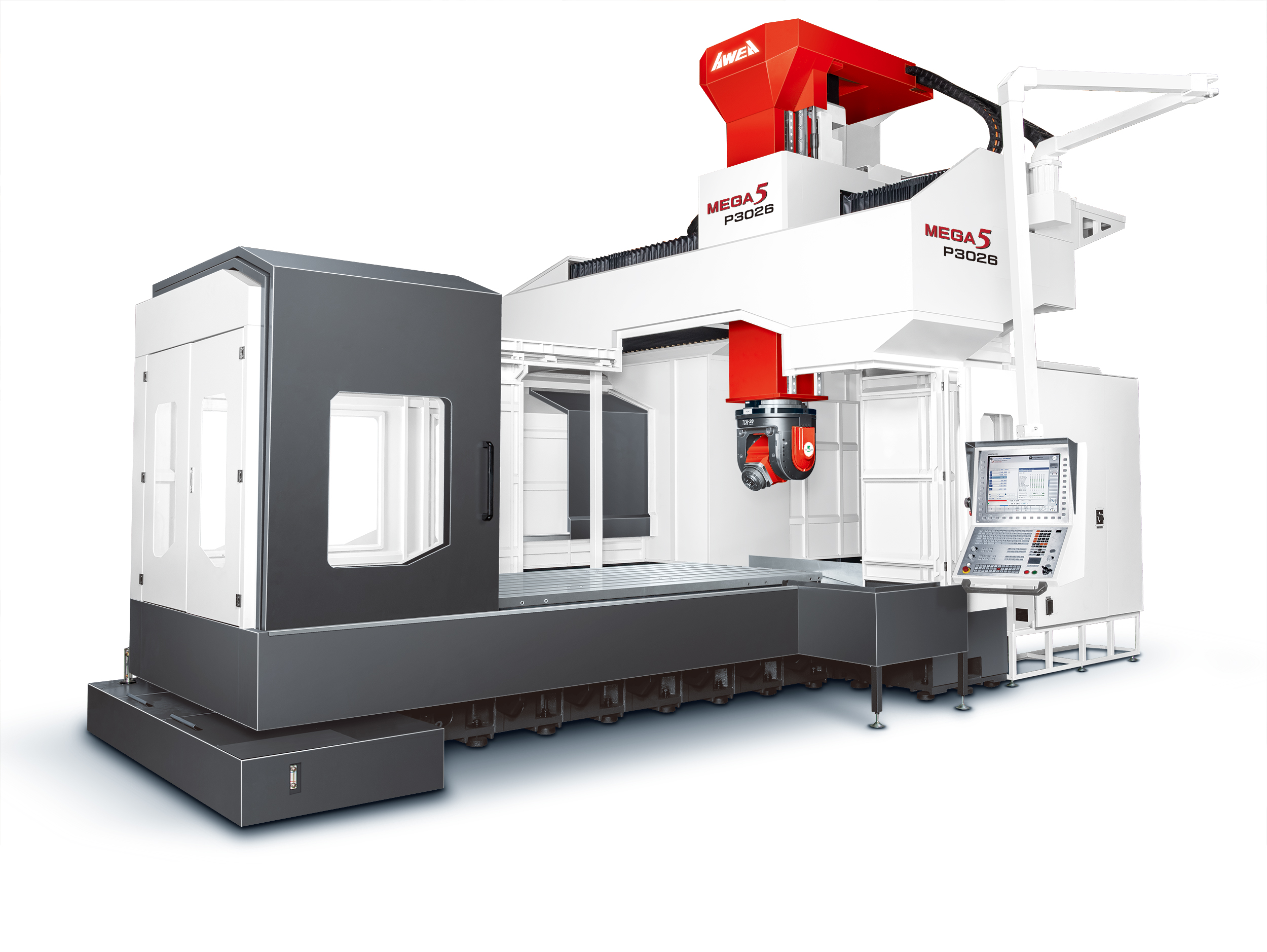

The AWEA MEGA5 P3032

Maximum Performance 5-Axes Machining Center
AWEA decades experience in bridge type machining center machine building and technology development combined with worldwide leading five axes head created the brand new MEGA5 series five axes bridge type machining centers. MEGA5 series are equipped with X, Y, Z, B, C five axes simultaneous movement control; vertical, horizontal machining and even intricate shape parts machining can be easily completed in one set up. Thus greatly increases the cutting capability and efficiency of large parts to cope with machining requirements in all kinds of industry.

Both HSK-A100 12,000 rpm high torque heavy duty spindle and HSK-A63 24,000 rpm high speed spindle are available for heavy cutting or fine finishing. Fixed columns or gantry type solutions are available for selection based on work piece size or weight. Comprehensive cutting solutions provide you best solution for upgrading capability required for high value added products.

Additional Information

X-axis Travel

Y-axis Travel

Z-axis Travel

Distance between columns

Dist. from spindle nose to table top

Distance from 90° spindle center line to table

Table size

T-slot

Table load capacity

Spindle taper

Spindle motor (S1/S6 40%)

Max. spindle speed

X-axis rapid feed rate

Y-axis rapid feed rate

Z-axis rapid feed rate

Cutting feed rate

Tool magazine capacity

Max. tool length

Max. tool weight

Max. tool diameter / adj. pocket empty

Positioning accuracy (JIS B 6338)

Positioning accuracy ( VDI 3441 )

Repeatability ( JIS B 6338 )

Repeatability ( VDI 3441 )

Coolant tank capacity

Lubrication oil tank capacity

Hydraulic tank capacity

Machine weight

Max. work-piece dimension - Length( X-axis )

Max. work-piece dimension - Width( Y-axis )

Max. work-piece dimension - Height( Z-axis )
