Name: FH1250SW
SKU: FH1250SW

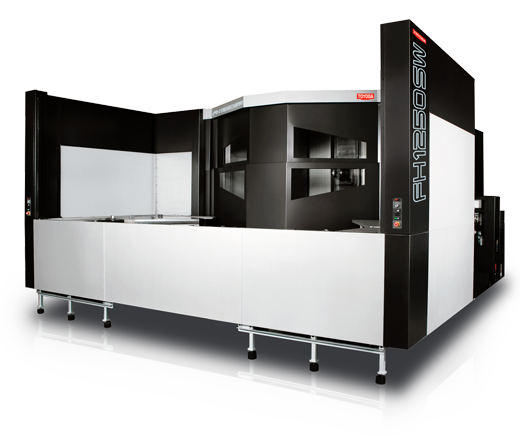

The FH1250SW is a quill-spindle horizontal machining center designed for heavy-duty operations. This machine’s unique 3,000 RPM spindle is ideal for boring and deep drilling, allowing workpieces previously requiring two operations to be completed on a single machine.

Additional Information

Pallet Size	49.2" x 49.2" (1,250 mm x 1,250 mm)
Table Index	Full NC table (360,000 positions)
X-axis Travel	86.6" (2,200 mm)
Y-axis Travel	59” (1,500 mm)
Z-axis Travel	72.8" (1,850 mm)
Max Workpiece Swing	21.6" (550 mm)
Max Workpiece Height	84.49” (2,400 mm)
Max Work Load on the Pallet	70.87” (1,800 mm)
Spindle Output Torque	11,000 lb (5,000 kg)
Available Spindle	CAT#50 60HP 3,000 RPM (1,313 Nm) 5.1" x 21.65" Quill Boring Bar
Rapid Feedrate (X axis)	1,260 ipm (32 m/min)
Rapid Feedrate (Y axis)	1,260 ipm (32 m/min)
Rapid Feedrate (Z axis)	1,654 ipm (42 m/min)
Tool Storage Capacity	60 Standard (121 Optional)
Standard Floor Space	293" x 390" (7,450 mm x 9,900 mm)
Machine Height	178" (4,520 mm)
Linear Position Accuracy	± .00012" (±0.003 mm) full stroke
Linear Repeatability	± 0.00008" (± 0.002 mm)
Rotary Table Index Accuracy	± 7 arc seconds
Standard Spindle	968 ft-lb (1,313 Nm)
Standard Net Weight	109,129 lb (49,500 kg)
