Name: FH500J
SKU: FH500J

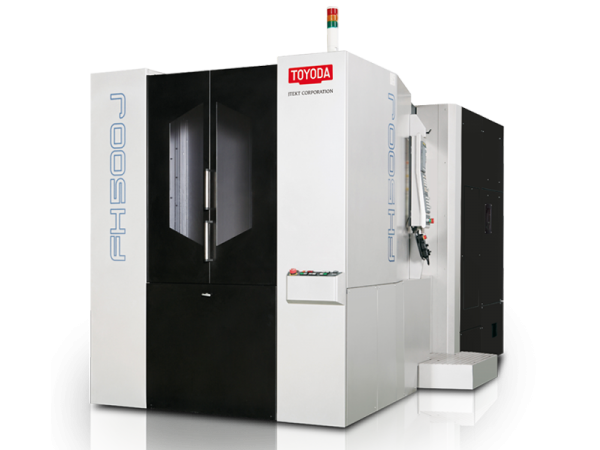

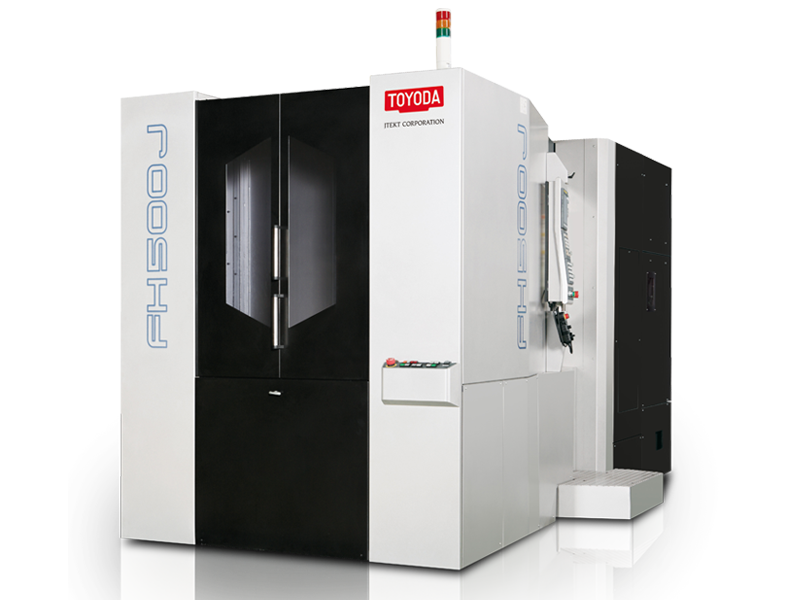

The FH500J and FH500J-50 are compact, high-speed horizontal machining centers featuring a 15,000 RPM spindle, tool-to-tool cycle time of .9 seconds, and a rapid feedrate of 2,362 ipm (60 m/min).

All FH500J models (#40 & #50) taper are equipped with a Direct Drive B Axis Table, featuring an index time (90 degrees) of 0.5 seconds and 360,000 degree positioning.

Additional Information

Pallet Size	19.68" x 19.68" (500 mm x 500 mm)
Table Index	Full NC table (360,000 positions)
X-axis Travel	28.74” (730 mm)
Y-axis Travel	28.74” (730 mm)
Z-axis Travel	33.46” (850 mm)
Max Workpiece Swing	31.50” (800 mm)
Max Workpiece Height	39.37" (1,000 mm)
Max Work Load on the Pallet	1,540 lb (700 kg)
Spindle Output Torque	295 ft-lb (400 Nm)
Rapid Feedrate (X axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)	2,362 ipm (60 m/min)
Tool Storage Capacity	60 Standard (119 Optional)
Standard Floor Space	91.73" x 182.28" (2,330 mm x 4,630 mm)
Machine Height	113" (2,870 mm)
Standard Net Weight	29,700 lb (13,500 kg)
