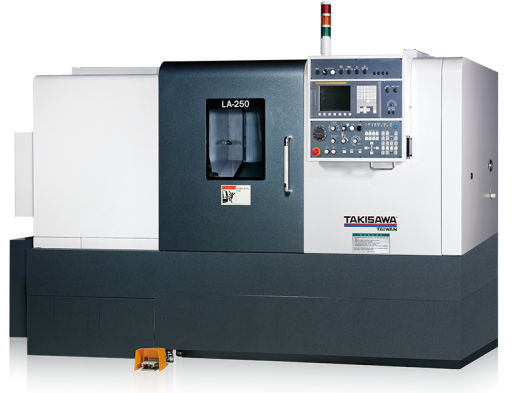

LA-250

  • Categories: JTEKT Turning Centers
  • Tags:

The LA model is designed with a high performance spindle and modulized structure with optional live tooling.

2 axes + C axis
Gear box spindle
Box guideway
LA-250
Standard turning center
Max Turning Length: 28.2″ (717 mm)
Max Turning Diameter: 17.7″ (450 mm)

LA-250L
Longer bed turning center
Max Turning Length: 44″ (1,117 mm)
Max Turning Diameter: 17.7″ (450 mm)

LA-250M
Turning center with milling capabilities
Max Turning Length: 26.9″ (683 mm)
Max Turning Diameter: 16.5″ (420 mm)

LA-250ML
Turning center with longer bed and milling capabilities
Max Turning Length: 42.6″ (1,083 mm)
Max Turning Diameter: 16.5″ (420 mm)

Additional Information

Max Workpiece Swing

Max Turning Dia

Max Turning Length

Max Bar Work Capacity

X-axis Travel

Z-axis Travel

Chuck size

Spindle speed

Spindle nose

Max. Through Hole Dia.
