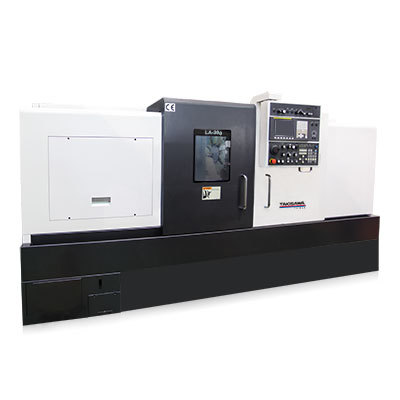

LA-300

  • Categories: JTEKT Turning Centers
  • Tags:

The LA300 model is designed with a high performance spindle, modulized structure with optional Milling and Y-Axis supported by a rigid boxway design, all in a compact footprint.

2 Axis Lathe with option for milling and Y-Axis

Gear box spindle
Box guideway
LA-300
Standard bed turning center
Max Turning Length: 42.8″ (1,086 mm)
Max Turning Diameter: 17.7″ (450 mm)
X Travel: 9.65″ (245 mm)

LA-300M
Standard bed turning center with milling capabilities
Max Turning Length: 43.9″ (1,116 mm)
Max Turning Diameter: 16.5″ (420 mm)
X Travel: 10″ (255 mm)

LA-300Y
Standard bed turning center with Y-Axis
Max Turning Length: 44.4″ (1,129 mm)
Max Turning Diameter: 13.8″ (350 mm)
X Travel: 8.66″ (220 mm)
Y Travel: ±2.0″ (±50 mm)

Additional Information

Max Workpiece Swing

Max Turning Dia

Max Turning Length

Max Bar Work Capacity

X-axis Travel

Z-axis Travel

Chuck size

Spindle speed

Spindle nose

Max. Through Hole Dia.
