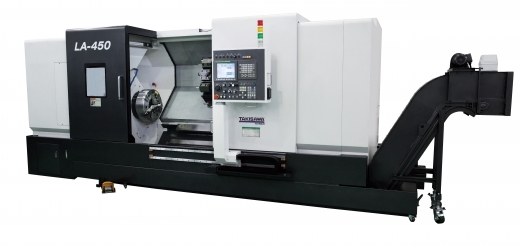

LA-450 L22

  • Categories: Turning Centers
  • Tags:

The LA model is designed with a high performance spindle and modularized structure with optional live tooling, C axis, or Y axis.

2 axes + C axis
Gear box spindle
Box guideway
LA-450 L8
Long bed turning center with 800 mm max. turning length
33.4″ (850 mm) Z Travel

LA-450 L16
Long bed turning center with 1,600 mm max. turning length
65″ (1,650 mm) Z Travel

LA-450 L22
Long bed turning center with 2,240 mm max. turning length
90.1″ (2,290 mm) Z Travel

Additional Information

Max Workpiece Swing

Max Turning Dia

Max Turning Length

Max Bar Work Capacity

X-axis Travel

Z-axis Travel

Chuck size

Spindle speed

Spindle nose

Max. Through Hole Dia.
