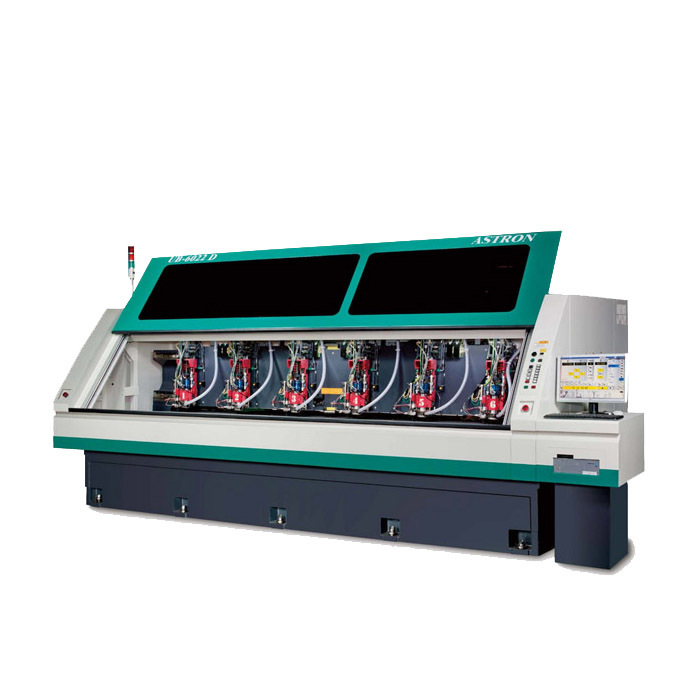

A digital high speed, six head multi-spindle machine designed and popularly used for Printed Circuit Board (PCB) machining. This series is also suited for non-PCB production applications in metals, plastics, etc.

This box type machine base and column are reinforced by inner ribs precisely positioned to increase the damping effect of the machine and increase rigidity. The base and column is a one-piece cast design, aged for four months to stabilize the casting before manufacturing.

This PCB drilling machine features patented NSK pre-tensioned, silent, ball screws installed in order to meet ultra high-speed positioning requirements.

Additional Information

Table size

Spindle Type

No. of Spindles

Spindle Distance

Spindle speed

Spindle Collet

Max Working Range

Tool Storage Capacity

Machine weight

X,Y-Axis Positioning System

X,Y-Axis Min Setting Unit

X,Y-Axis Position Accuracy

Z-Axis Positioning System

Z-Axis Min Setting Unit

Z-Axis Feeding Speed

Drilling Accuracy

Air Clamping

CNC Controller

CPU Specification

Hard Disk

Memory Volume


Operation System
