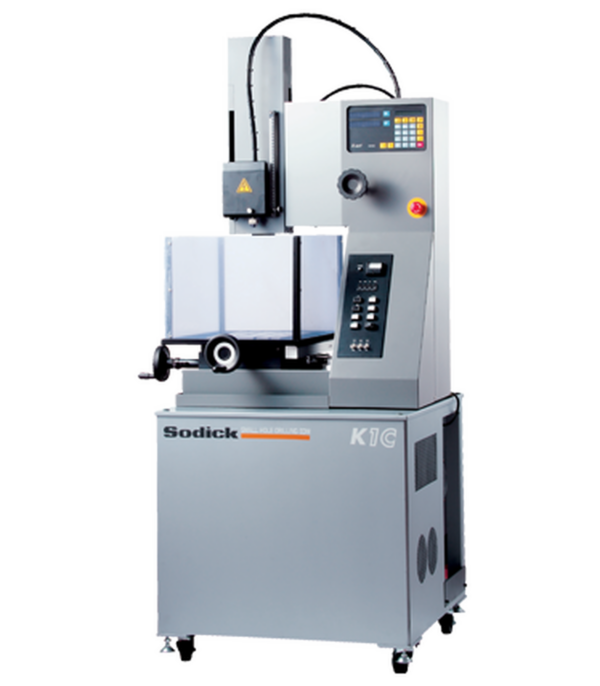

K1CS_df2c0d3bb1bc315a530eb3de2cbf821e-600x686

K1C

Categories: K Series Small Hole EDM Sodick
Tags:

About
Specifications

Sodick K Series – K1C

The K1C Small Hole Popper is ideal for machining difficult to cut carbide and heat treated workpieces.

Additional Information

X-axis Travel	7.87” (200 mm)
Y-axis Travel	11.81" (300 mm)
Z-axis Travel	11.81” (300 mm)
W-axis travel	9.84” (250 mm)
Electrode Dia.	Φ.010” ~ .12” (Φ.25 ~ 3 mm)
Work Table Size	9.84” x 13.78” (250 x 350 mm)
Dist. From Guide to Table	1.97” ~ 11.81” (50 ~ 300 mm)
Machine Dim.	31.89” x 34.25” x 79.33” (810 x 870 x 2,015 mm)
Max. Workpiece Weight	220.5 lbs (100 kg)
Machine weight	1,212.5 lbs (550 kg)
