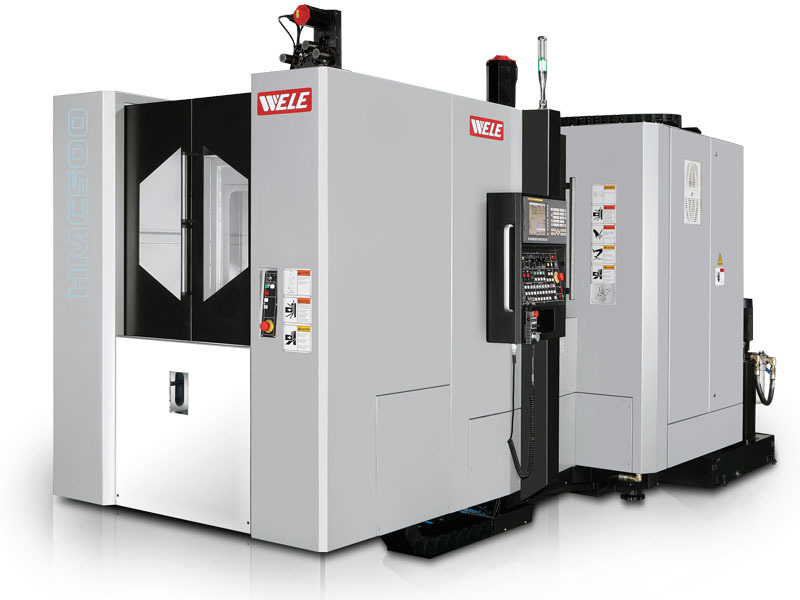

A step up from a 400 mm size machine, the Wele HMC500 offers larger work envelope and superior production value for high-speed operations. The HMC500 features a 30 HP, 15,000 RPM built-in motor style, with 3.3 seconds ramp up 0 to 15,000 high-speed spindle makes the most of your production.

Additional Information

Pallet Size	19.68" x 19.68" (500 mm x 500 mm)
Table Index	Full NC table (360,000 positions)
X-axis Travel	25.2” (650 mm)
Y-axis Travel	24” (610 mm)
Z-axis Travel	26.8” (680 mm)
Max Workpiece Swing	29.5” (630 mm)
Max Workpiece Height	35.43" (900 mm)
Max Work Load on the Pallet	1,100 lb (500 kg)
Spindle Output Torque	123 ft-lb (167Nm)
Rapid Feedrate (X axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)	2,362 ipm (60 m/min)
Tool Storage Capacity	60 Standard
Standard Floor Space	104.33" x 181.22" (2,650 mm x 4,603 mm)
Machine Height	115.59" (2,936 mm)
Standard Net Weight	25,350 lb (11,500 kg)
