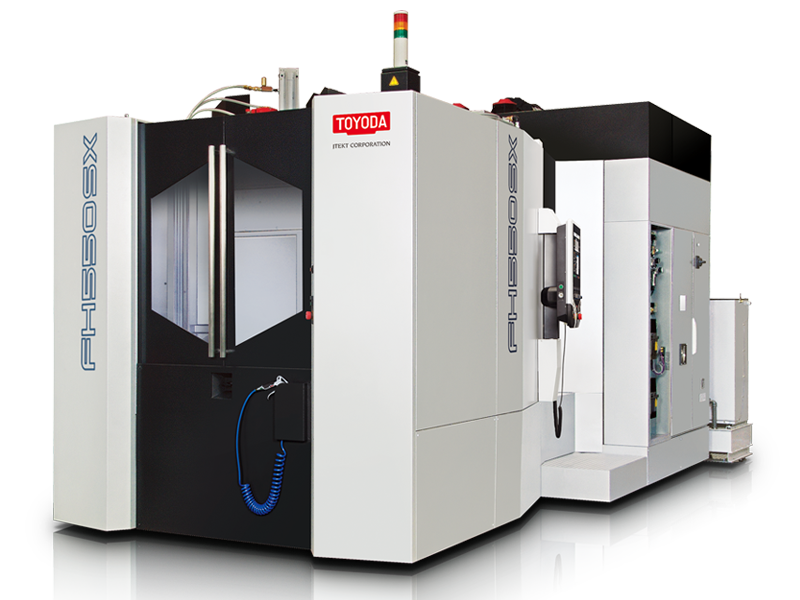

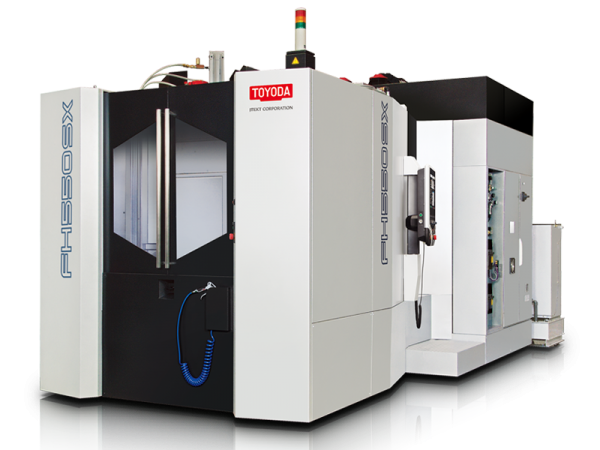

FH550SX

Categories:
Tags:

About
Specifications

The FH550SX is a powerful, high-speed horizontal machining center featuring an 8,000 RPM high-torque spindle, with an option of 15,000 RPM spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.

Additional Information

Pallet Size	21.65" x 21.65" (550 mm x 550 mm)
Table Index	Full NC table (360,000 positions)
X-axis Travel	29.52” (750 mm)
Y-axis Travel	31.50” (800 mm)
Z-axis Travel	33.46” (850 mm)
Max Workpiece Swing	33.46” (850 mm)
Max Workpiece Height	39.37" (1,000 mm)
Max Work Load on the Pallet	1,760 lb (800 kg)
Spindle Output Torque	391 ft-lb (530 Nm)
Rapid Feedrate (X axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)	2,362 ipm (60 m/min)
Tool Storage Capacity	60 Standard (121 Optional)
Standard Floor Space	130" x 224" (3,312 mm x 5,695 mm)
Machine Height	126" (3,200 mm)
Standard Net Weight	35,494 lb (16,100 kg)
