Name: FA630S
SKU: FA630S

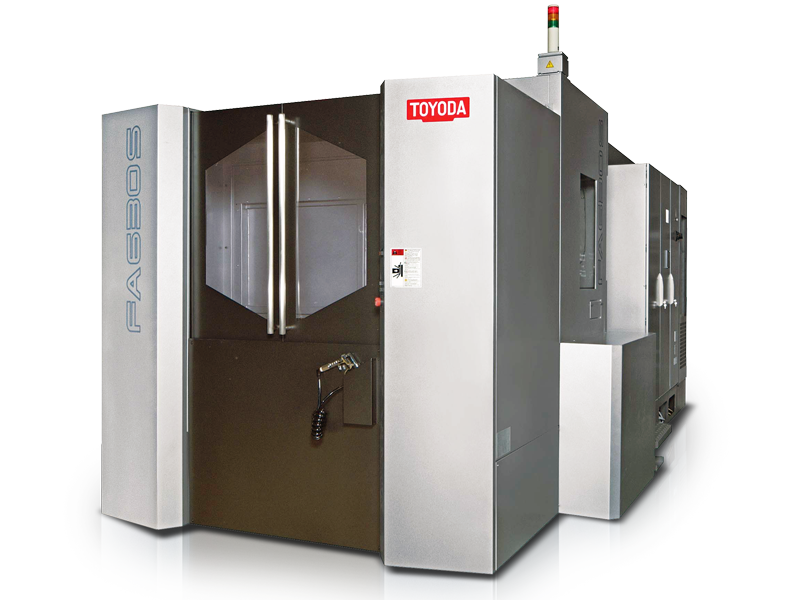

The FA630S is a heavy-duty horizontal machining center featuring a robust column and bed, box guideways, and a powerful spindle. These features allow for powerful machining with high accuracy.

Additional Information

Pallet Size	24.8" x 24.8" (630 mm x 630 mm)
Table Index	Rotary table (1 degree)
X-axis Travel	39.37" (1,000 mm)
Y-axis Travel	33.46” (850 mm)
Z-axis Travel	29.52” (750 mm)
Max Workpiece Swing	39.37" (1,000 mm)
Max Workpiece Height	39.37" (1,000 mm)
Max Work Load on the Pallet	2,860 lb (1,300 kg)
Spindle Output Torque	391 ft-lb (530 Nm)
Available Spindle	CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis)	1,417 ipm (36 m/min)
Rapid Feedrate (Y axis)	1,417 ipm (36 m/min)
Rapid Feedrate (Z axis)	1,417 ipm (36 m/min)
Tool Storage Capacity	60 Standard (121, 190, 240 Optional)
Standard Floor Space	139.8" x 238" (3,550 mm x 6,050 mm)
Machine Height	140" (3,561 mm)
Linear Position Accuracy	± 0.00012" (± 0.003 mm) full stroke
Linear Repeatability	± 0.00008" (± 0.002 mm)
Rotary Table Index Accuracy	± 7 arc seconds
Standard Net Weight	35,200 lb (16,000 kg)
