Name: Diamont 42 SY2-B
SKU: Diamont 42 SY2-B

Diamont 42 SY2-B

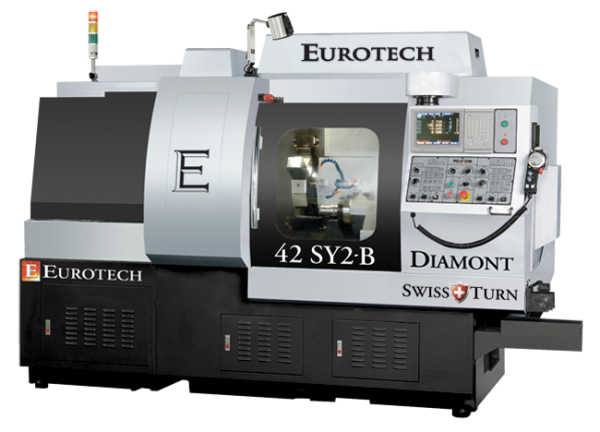

DIAMONT 42 SY2-B
Up to 11-axis, 42mm swiss-type CNC auto lathe with 12-live station turret, gang static and driven tooling, 2 C-axes, 2 B-axes, 2 Y-axes, and sub-spindle.

Additional Information

Max Diameter	1.8"
Max Machining Length Per Chuck	11.02"
Max Drilling Diameter	30mm
Max Tapping Diameter	M16
OD Tooling Slide1 # of tools	5
OD Tooling Slide 1 Dim.	20mm x 20mm x 120mm
Cross Working Driven Tools Slide 1	4
Dimension	16 mm (ER25)
Speed	6000 RPM
360 Deg Working Drive tools Slide 2	8
Number of stations	12
Number of live tools	24
Number/Potential of cutting tools	48
Main Spindle Dia.	46mm
Main Spindle Speed	6000 rpm
Main Spindle Angular Movement	Full C Axis
Main Spindle HP	10
Back Working Spindle Dia.	46mm
Back Working Spindle Speed	6000 rpm
Back Working Spindle Max Length for front eject	250mm
Back Working Spindle Angular movement	Full C Axis
Back Working Spindle HP	10
